ONE DEVICE,
MULTIPLE RADIOFREQUENCY TREATMENTS

COMPANY OVERVIEW
F Care Systems is a leading manufacturer of medical and aesthetic equipment. Its focus lies on the treatment of various types of varicose veins and hemorrhoids based on the principle of thermocoagulation. The company develops innovative equipment, such that the treatment for patients is perceived as painless, thus increasing comfort.
The headquarters of F Care Systems is located in Antwerp, Belgium. It has branch offices in France, Germany, USA and Hong Kong. FCare products are being sold in more than 19 countries all over the world. To ensure the quality of these products, the company holds ISO 9001 and the ISO 13485 medical device manufacturing quality certification. Furthermore, their medical products are CE (European Conformity) and FDA-USA (510K) certified.
PRODUCT OVERVIEW

MEDRF4000

The World’s first device that solely utilizes radiofrequency and which can be used to treat every conceivable condition which responds to radiofrequency energy.



The MedRF4000® is a monopolar RF generator capable of delivering 4MHz radio waves to a variety of probes and catheters used in multiple RF ablation procedures. Parameter presets offer plug-and-play readiness for various treatment types, and a foot pedal allows hands-free control of energy application. The MedRF4000® supports practitioners during the treatment by providing real-time information – this means they remain in complete control. The principle of thermocoagulation guarantees an effective intervention in just a few minutes – it is safe, reliable, adaptable and minimizes complications for your patient.

Advantages:

PatientsPhysicians
  • No pain during and after treatment
  • No pigmentation or allergic skin reaction
  • No dermatological reactions due to chemical compound
  • High esthetic outcome
  • Easy to use
  • Permanent occlusions
  • All body parts
  • Semi-sterile environment (private practice)
  • No chemical agent in the body
  • Collateral, peripheral and perforating veins can be treated
INDICATIONS

PROCTOLOGY

Hemorrhoids
HPR45i
Fistura
Fistula

PHLEBOLOGY

Spider Veins
Needle Holder
Perforator Veins
CR30i
Shaphenous Veins
CR45i
WATCH THE VIDEO
RAFAELO PROCEDURE FOR HEMORRHOIDS
RADIOFREQUENCY ABLATION OF ANAL FISTULAS
Visit The Website

RF MEDICAL

WHAT IS RADIO FREQUENCY ABLATION?

Radio Frequency Ablation (RFA) is a medical procedure in which part of the electrical conduction system of the heart, tumour or other dysfunctional tissue is ablated using the heat generated from high frequency alternating current (in the range of 350-500 kHz). RFA is generally conducted in the outpatient setting, using either local anaesthetics or conscious sedation anaesthesia.


Two important advantages of RF current (over previously used low frequency AC or pulses of DC) are that it does not directly stimulate nerves or heat muscle and therefore can often be used without the need for general anaesthetic, and that it is very specific for treating the desired tissue without significant collateral damage.

INDICATIONS

  • Liver Cancer
  • Thyroid (Benign nodule & recurrent thyroid cancer)
  • Breast Cancer
  • Snoring
  • Lung Cancer
  • Hypersplenism
  • Neurofiroma
  • Renal Cancer
  • Insulinoma
  • Uterine Fibroid
  • Varicose Vein
  • Osteoid Osteoma
  • Benign prostate hyperplasia
RF ABLATION SYSTEM M-3004

200W Multifunctional Generator that can cover all the applications using multi-electrodes

FEATURES:

  • Switching Control System for larger ablation sizes
  • Compatible with various electrode types
  • Various treatment algorithms in memory
  • 7” TFT LCD touch screen with smart UI
  • Advanced Self Test function
  • Automatic identification and function test of the catheter for the varicose vein mode
  • Easy S/W upgrade and data download by USB(Front)
  • Easy PC monitoring by USB(Back)
  • Patient pad Monitoring System
  • 3 channels of temperature sensing at the same time
  • Monopolar and Bipolar electrode can work together
  • Voice information system

NEEDLE SWITCHING:

TUMESCENT INFILTRATION PUMP RFP-300
FEATURES:
  • Operation status display
  • Injection speed control
  • Dedicated IV Pole included
A VARIETY OF ELECTRODES TO TREAT VARIOUS CONDITIONS
1. Big-Tip (Internally Cooled Electrode)
APPLICATIONS:
To treat Cancers in Liver, Lung, Kidney and Breast
2. V-Tip (Variable Exposure Length Tip)
FEATURES:
  • Internal cooling system prevents contiguous tissue from charring and thus widens ablation zone
  • Smoothed out raised edge of insulation sheath for easier inserting and repositioning
  • Angled connection of the tubings& cable to the handle is quite useful for percutaneous approach under C.T guidance
APPLICATIONS:
To treat Osteoid Osteoma, Uterine Fibroid, Adenomyosis and Cancers in Liver, Lung and Kidney
3. Jet-Tip (Cooled Wet Tip)
New horizon of straight needle! Now straight needle can also make large ablation size
FEATURES:
  • Ideal straight needle by combining Internally Cooled needle and Saline Perfusion needle
  • Jet-Tip (Cooled Wet Tip) is designed to prevent contagious tissue from charring and enhances frictional heat and thus maximizes ablation zone
  • Can minimize irregular ablation shape by minimized saline perfusion volume
  • Smoothed out raised edge of insulation sheath for easier inserting and repositioning
APPLICATIONS:
To treat Cancers in Liver, Lung and Kidney
4. Jet-Tip Twins & Jet-Tip Triple
FEATURES:

Jet-Tip Twins

  • Makes a larger ablation size (up to 7cm)
  • Much easier to use than cluster electrode
  • Less traumatic than cluster electrode
  • Highly effective in treating Portal Vein Tumour Thrombus
Jet-Tip Triple

  • Makes the largest ablation size in the world (with RF)
  • Can use with monopolar and/or bipolar needle switching
  • With bipolar needle switching, “no touch technique” is possible
  • No heat-sync effect
CHARACTERISTICS OF JET-TIP TWINS & JET-TIP TRIPLE:
  • Independent temperature sensor and RF cable for each needle
  • United cooling system tubes
  • Needle switching possible
APPLICATIONS:
To treat Cancers in Liver, Lung and Kidney
5. RFT series – Internally cooled

RF ABLATION FOR THYROID

ADVANTAGES OF THYROID RFA:

  • No Scar
  • Minimally invasive
  • No admission
  • Quick recovery
  • Easy procedurer
  • No complication (Parathyroid)
  • Local anaesthesia
  • Good result, easy re-therapy
  • No hypothyroidism
APPLICATIONS:
To treat thyroid
6. EMT
FEATURES:
  • Unique temperature control program
  • Can control menstruation volume by controlling ablation area.
  • The procedure time is short within minutes
  • No incisions are required, leaving your uterus intact
APPLICATIONS:
For Endometrial Ablation
Learn More

Optimed

OptiMed is a German company engaged in the research and development, production and global distribution of medical products for minimal invasive therapy.

OptiMed production sites are located in Germany and guarantees consistent and continuous quality. Their products are available in over 40 countries around the world. Their long-standing experience in the field of medical product approval, enables them to meet both national and European requirements (CE certification) and international specifications.

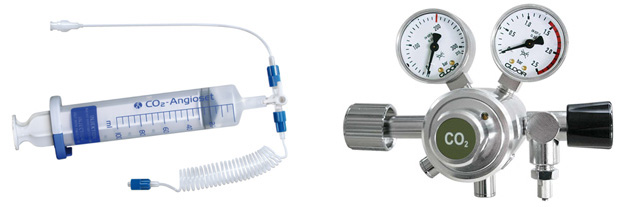

CO2 Angioset
CO2 for angiography is a safe alternative to iodine-based or low-osmolar contrast media. Its use is as straight forward as with a conventional DSA.
Indications:

  • Renal Insufficiency
  • Intolerance to iodine-based contrast medium
  • Hyperthyroidism
  • Presentation of Pathological shunts
  • Search for sources of haemorrhage
  • Display of abdominal aortic aneurysm
  • Reduce the side-effects of iodine-based contrast medium
Range of Applications:

  • Pelvic arteries
  • Arteries of legs
  • Renal arteries
  • Visceral arteries
  • Haemodialysis shunts
  • Venous Imaging (max. 40 ml per injection)
  • Imaging of retrograde portal artery with TIPS
Physics comparison Contrast media CO2
Viscosity + –
Velocity – +
X-ray visibility positive CM negative CM
Molecular structure
Molecular weight CO2 > O2
Physics comparison Contrast media CO2
Excretion Kidney Lung
Contra indication Allergic reaction
Renal failure
Hyper/hypo thyroidism 		– Arterial septal defect
– Ventricular septal defect
– Open foramen ovale
– Poor lung function
Binding capacity to erythrocyte CO2 has a 3x binding capability than O2
Henderson / Hasselbalch PH-deviation

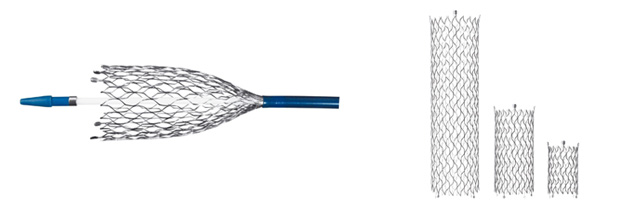

Sinus-Venous Stent

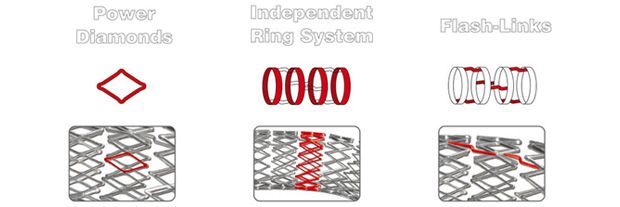

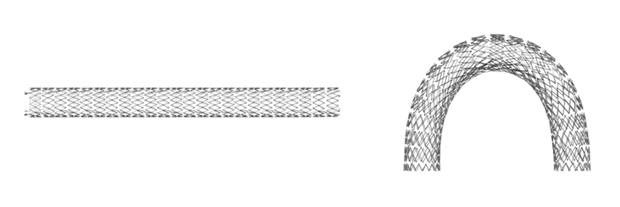

The Sinus-venous stent is OptiMed’s most powerful stent. It is especially developed for venous indications. The unique hybrid design combines radial force with high flexibility, which is necessary to overcome heavy venous obstructions.

  • Made seamlessly from one piece nitinol
  • High-grade electro-polishing
  • No significant stent shortening
  • Application device with radiopaque markers
  • Smooth-running pull-back technique
  • Anti-jump technique for exact stent placement
  • Braided sheath and flexible tip
Indications:

  • Recurring iliofemoral vein thrombosis
  • Post thrombotic syndrome
  • May-Thurner Syndrome
  • Deep vein Thrombosis (DVT)
  • Tumor-related stenoses
Sinus-XL
This is a high-lumen nitinol stent dedicated for aorta, vena cava and Endoleak type 1a and 1b
Indications:
  • Aortic stenosis and dissections
  • Vena cava compression syndrome
  • Obstructions of the vena cava
  • Endoleak type 1a and 1b
Features:
  • Outstanding radial force due to the closed-cell stent design especially developed for straight vessel segments
  • Tantalum markers on stent ends for excellent visibility
  • Anti-jump Technique TM to avoid stent migration during the stent deployment
